Metal Base PCB
Aluminium and copper base laminates for LED, power and automotive lighting. The thermal path is the product: dielectric thickness, base flatness and thermal resistance. DFM review within 24 hours.
1 – 4Layers
1 – 3Thermal conductivity
0.20 mmMin drill
7 – 10 dLead time
Catalogue
Boards we build on this line.
Representative items from this line’s catalogue. Open a board for its build parameters — every card leads to its own detail page.
P2.9 LED Display Board
6L · Aluminium 5052 · 1.5 W/m·K
View this board
Mini LED Backlight Board
2L · Aluminium · 1.2 mm
View this board

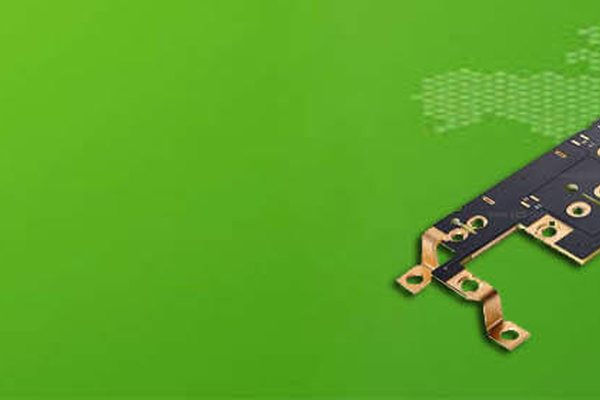

2-Layer Aluminium PCB
2L · 1.0 W/m·K · Lead-free HASL
View this boardLED Ceramic Substrate
2L · Al2O3 ceramic · 24 W/m·K
View this boardAluminium Nitride Ceramic PCB
2L · AlN ceramic · 170 W/m·K
View this boardTechnical specifications
Metal Base PCB
| Layers | 1 – 2 |
| Board thickness | 0.8 – 2.0 mm |
| Min trace / space | 6 / 6 mil |
| Metal base | Aluminium 5052 / 6061 |
| Thermal conductivity | 1.0 – 2.0 W/m·K |
| Where it is used | LED · Power · Automotive lamps |
Other product families
No obligation
Send the file. Get a real answer.
Upload a Gerber and we will come back within 24 hours with the DFM issues, a price and a lead time. If your design is not a fit for our process, we will say so.
