Optical Module PCB
Small-form-factor boards for 100G to 800G optical transceivers. Fine traces, laser-drilled microvias, tight impedance on the high-speed pairs and segmented gold fingers. DFM review within 24 hours.
2 / 2Min trace / space
0.10 mmMicrovia
±5%Impedance
8 – 12 dLead time
Catalogue
Boards we build on this line.
Representative items from this line’s catalogue. Open a board for its build parameters — every card leads to its own detail page.
Half-Hole WiFi Module PCB
4L · 4mil / 4mil · Immersion Gold
View this boardGPS Antenna Module Board
2L · 1.0mm · ±10%
View this boardGPS Module Multilayer PCB
4L · 1.0mm · Immersion Gold
View this boardVehicle WiFi Module PCB
6L · FR4 · Immersion Gold
View this board
Fibre-Optical Module PCB
8L · ±5% · Immersion Gold+Gold finger
View this board

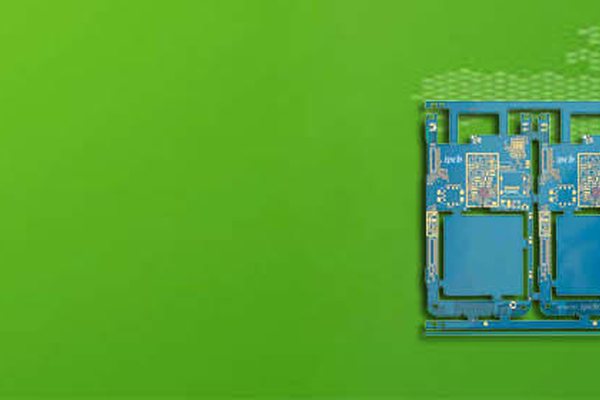

6L 2+N+2 HDI WiFi Module
6L · 0.10 mm · ENIG
View this boardTechnical specifications
Optical Module PCB
| Layers | 4 – 12 |
| Board thickness | 0.6 – 1.6 mm |
| Min trace / space | 3 / 3 mil |
| Min drill | 0.15 mm |
| Impedance | ±10% |
| Where it is used | Data-centre optics · Transceivers |
